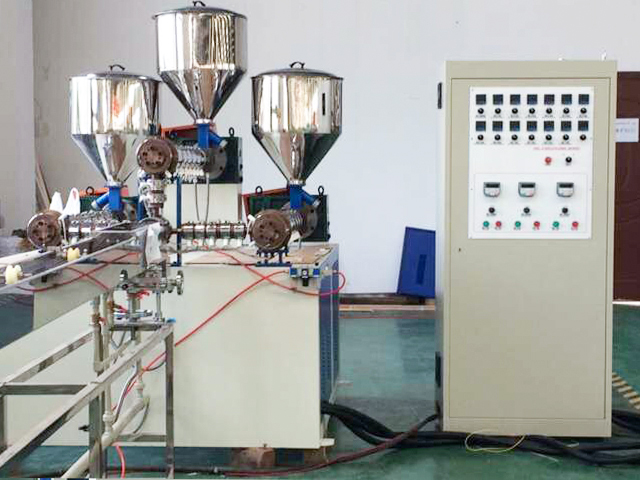

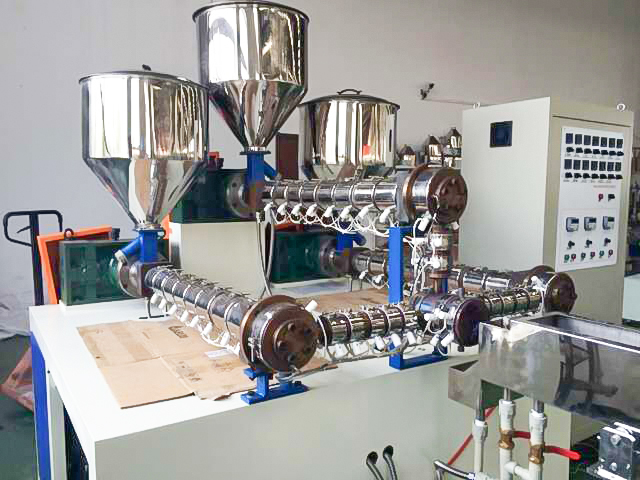

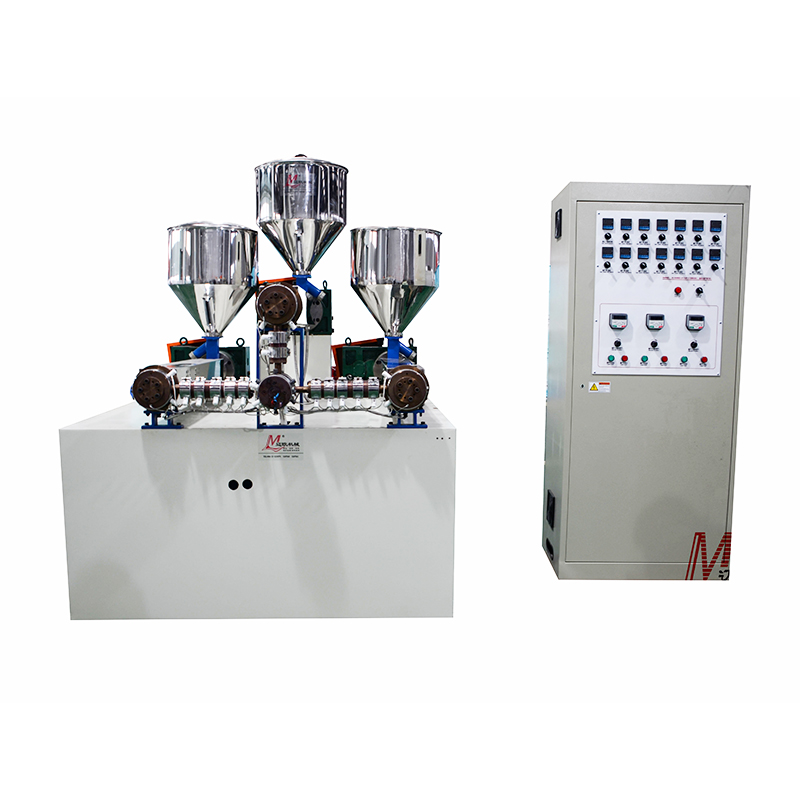

Model ML13A is a tube extrusion line, composed of three-color co-extruder and die, size setting and water cooling unit, haul-off unit, rotary cutter unit, air compressor. The machine can produce all kinds size of three-color drinking straw、spiral strip straw. All the machine’s controls base with the control elements ergonomically adapted to permit easy operation.
Applications Of Drinking Straw Making Machine :
Drinking industry: drinking straw, lollipop, coffe stick, oral liquid straw
Other industry: signature refill, cotton swab stick, medical tube, perfume pipe, balloon pole, flag pole
Specifications Of PP Straw Extrusion Machine:
| Model | ML13A | |
| Feature | Material | PP |
| Color | 3 | |
| Straw diameter | φ3.0 ～ φ12 mm | |
| Thickness | 0.10 ～ 0.35 mm | |
| Straw length | 80 ～ 300 mm | |
| Stripes | Straight or Helical | |
| Capability | 400 ～ 1800 pcs/min | |
| Extruding output range | 30 ～ 60 kgs/hr | |
| Extruder | Main Screw diameter | φ45 mm×3 ( BM Screw) |
| Screw L/D | 28 : 1 | |
| Main driving motor | 7.5 Kw×3 (VFD) | |
| Gearbox | ZLY112 | |
| Automatic thermo-controller | 16sets | |
| Heating power | 18 kw | |
| Water tank | Forming device | 1 set |
| Vacuum Pump motor | 1.1 kw(choose) | |
| Water storage tank | (length)4800 mm /304 Steel stainless | |
| Base frame material | （304 Steel stainless） | |
| Blow dry device | 1 set | |
| Take up & Cutting Unit | Take up unit | 1 set |
| Motor | 0.75kW×1(VFD) | |
| Cutting knife unit | 1 set | |
| Motor | 0.75kW×1(VFD) | |
| Angle of port | 90°/60°/45° | |
| Digital counter | 1 set | |
|
Others |
Air compressor | 1.5kw(choose) |
| Dimension LxWxH | 8m×1.5m×1.6 m | |
| Machine weight | 3400 kgs | |
Technical Features Of PP Straw Extrusion Machine：
1.The extrusion die can be special designed and easy exchanged to produce pipe and shaping stuff.
2.Water bath in stainless steel can be adjusted in three planes.
3.The haul-off unit can be belt or rollers, it is customizable. Fitted with double rotary cutter. Cut angle: 90°/45°, 90°/60°.
4.Conveyor device(you may select if you want).
